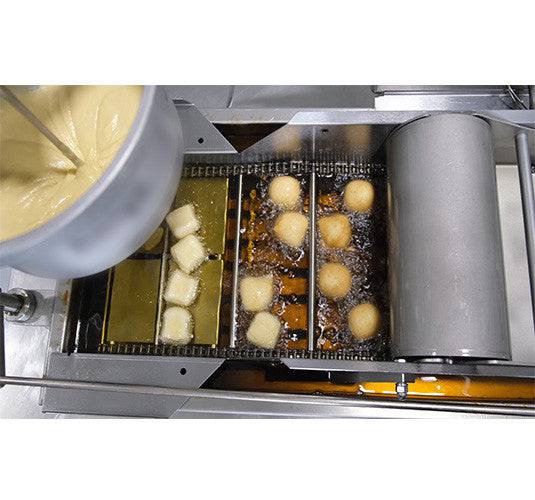

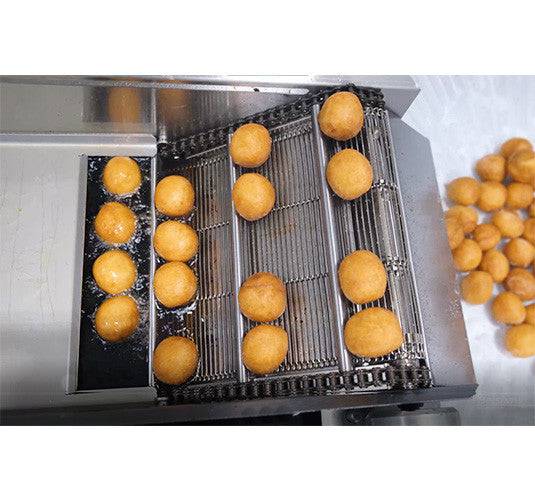

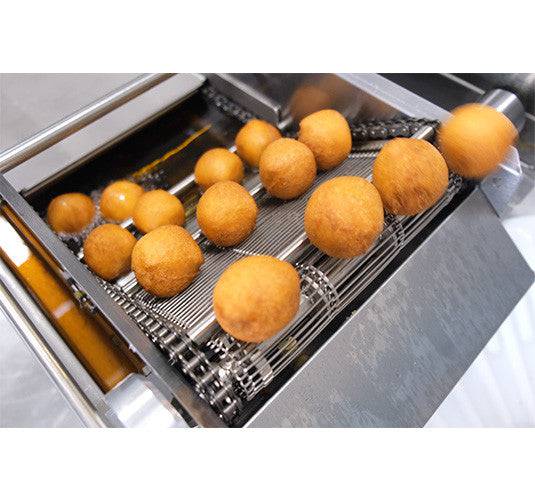

Belshaw's new RS Roller-Submerger system expands the capability of your Donut Robot® fryer. The RS System Deposits, Rolls, and Submerges Cake Donut Holes to provide even frying and color. The RS System includes:

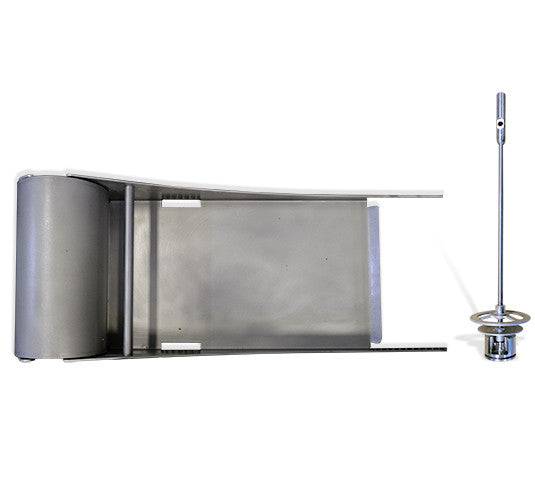

• Donut Hole Plunger (1-9/16 inch) – forms 4 Donut Holes per conveyor pocket, up to 1½ inches in diameter (38 mm), 0.6 oz (17 grams) after frying.
• Roller-Submerger – guides and submerges the Donut Holes under the shortening to ensure they fry evenly.

The RS System is compatible with existing Mark II and Mark V machines, including all Gas and GP models.

*****GP models will require a Standard Hopper, rather than the Mini-Donut Hopper used in GP machines.

The RS System is easy to set up, and changeover is under 5 minutes.

Please Read Below;

 * This unit is designed for a 2026 Mark ll, If using on a 2025 or older unit the following is required to install-

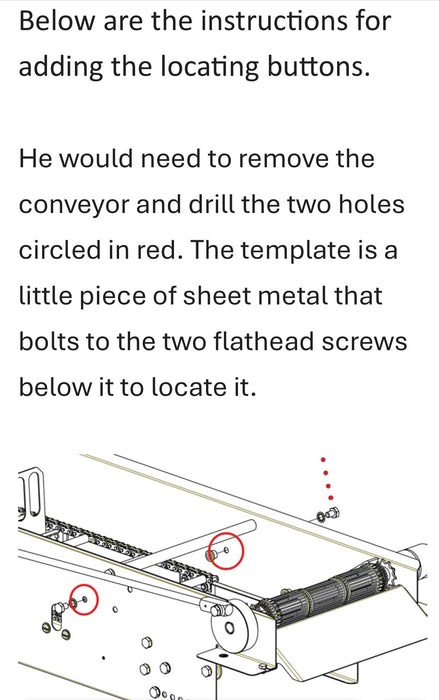

To add the submerger to 2025 or older units for donut holes you would need to remove the conveyor and drill 2 holes in the side panel to install the locating buttons. (Circled in red on photo). The template is a little piece of sheet metal that bolts to the two flathead screws to locate it. (See diagram in photos).

 If you plan on running mochi, you will need to manually turn or flip the donuts shortly after the drop plate.

(** Patent pending)
