* * Includes Removable Cutter Carriage Assembly for the 26" Shaft Rotary Cutters-

* Left to Right production indicates that you are standing at the front (where  dough has been cut) of the machine looking to the back of the machine (where the rollers are placed) and you will be working the dough from the left side of the machine. This will have the dough roller adjustment controls and belt speed on the left side of the machine. (Photo has controls on the right side)

Other Sizes are available not shown-

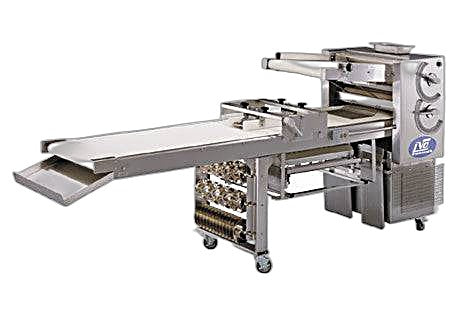

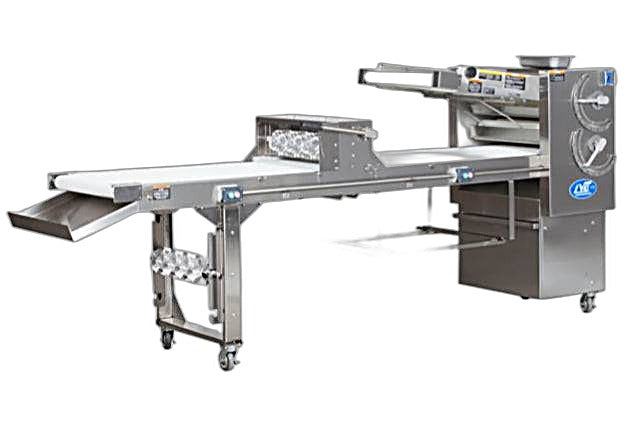

The LVO SM224-9  A Production table that enables the infeed conveyor belt to carry the dough to the sheeting rollers where it is sheeted in two gradual stages

When used as a Donut Production table for yeast fried goods, the dough is sheeted and cut with cutters automatically and uniformly. Rotary cutters are available for Donuts, bismarks, long johns, croissants and turnovers. You can also sheet basic sweet dough, danish and puff pastry.

LVO Manufacturing Inc. warrants equipment manufactured by it to be free from defects in material and workmanship for a period of one (1) year from date of delivery.

FEATURES:

• Heavy Duty Stainless Steel Construction
• 9 ft. conveyor table
• Ease of clean-up promotes a sanitary environment
• Stainless Steel Curling Chains - light & heavy
• Stainless Steel Dough Guides, adjustable
• Two sets of cast nylon rollers - positive adjustment
• Stainless Steel Scrapers - easily removed for cleaning, no tools required
• Electronic Speed Control
• Rubberized Conveyor Belt - FDA Compliant Material
• On/Off Stations located on either side of machine
• 20' Electrical Cord
• Cutter Carriage removable when not in use
• Cutter Storage Hanger for each cutter

SPECIFICATIONS:

• Four 4" Dia. Casters - all locking type
• 1 HP Motor, 115V, 60 Hz, 10 Amp
• Equipped with Automatic Roller Safety Switch - lift the bar and motor shuts off. The displayed moulder must be ordered separately- call 918-739-4380
• Overall Dimensions
• Width – 35”
• Height – 54 ¼”
• Table Height – 35 ½” Depth (Standard 9’ Table) – 116” (124” with Catch Tray) Electrical Information
• 115 Volt  Full Load Amps 10.0
• 230 Volt Full Load Amps 5.0

DIMENSIONS:

10' 4" (124") L x 54 1/4" H x 36" W
